Draw Wire Encoder (Incremental)
AWE 404
Aluminium Box Body — 0–4,000 mm Stroke, IP54
Optical
IP54
Incremental
Box Body
Aluminium Box Body — 0–4,000 mm Stroke, IP54

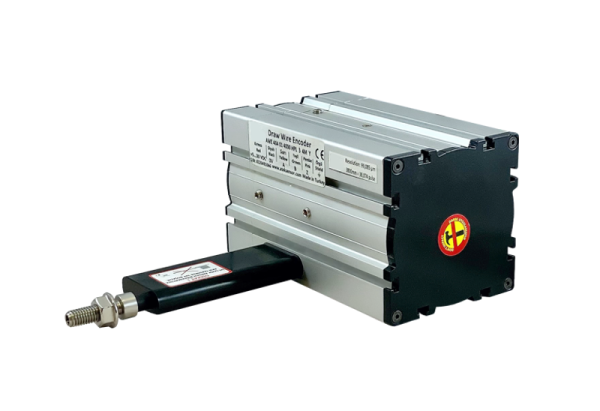

The AWE 404 is a draw wire incremental encoder housed in a robust aluminium box body. It converts linear motion into incremental digital pulses via an optical encoder and high-strength stainless steel wire. Available in strokes up to 4,000 mm, the box housing provides extra mechanical protection suitable for harsh industrial environments.
Aluminium box housing — extra mechanical protection for demanding environments
Optical incremental measurement — accurate digital pulse output for position control
Up to 4,000 mm stroke — flexible stroke options from 0–1,000 mm to 0–4,000 mm
IP54 standard, IP67 optional — suited to wet and dusty industrial environments
Stainless steel wire — corrosion resistant, high tensile strength
Multiple output types available — PP, TTL, HTL, HPL to suit any controller
| Stroke Length | 0–1,000 mm or 0–4,000 mm |
| Measuring Type | Optical (incremental) |
| IP Rating | IP54 (optional IP67) |
| Body Material | Aluminium box |
| Output | Incremental digital pulses |
| Output Signals | A, B, Z |
| Max. Output Current | 60 mA per channel |
| Measuring Wire | Stainless steel |
| Supply (PP) | 10–30 VDC |
| Output (PP) | 10–30 VDC Push-Pull |
| Supply (TTL) | 5 VDC |
| Output (TTL) | 5 V RS422 Line Driver |
| Output Signals | A, B, Z |
| Max. Output Current | 60 mA per channel |
Box body aluminium housing
