Draw Wire Encoders (Incremental)
AWE 512

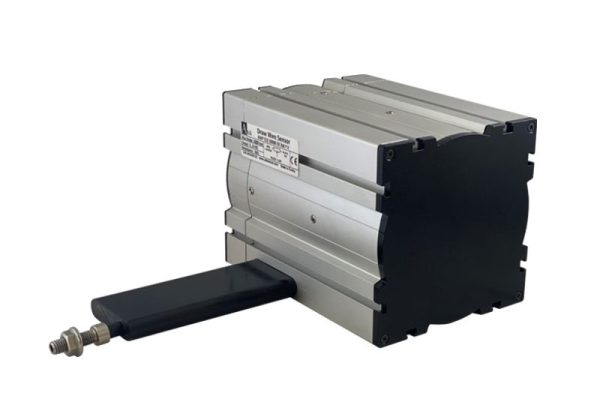

Heavy-Duty Draw Wire Encoder - Aluminium Box Body, 0–12,000 mm
Heavy-Duty Draw Wire Encoder - Aluminium Box Body, 0–12,000 mm
Heavy-duty aluminium box-body draw wire encoder capable of measuring strokes up to 12 metres. Optional IP67 protection available. The AWE 512 is built for the most demanding long-stroke linear measurement applications in industrial environments.
Stroke to 12,000 mm - 0–5,000 mm or 0–12,000 mm versions
0.3 mm/pulse resolution - standard optical incremental
Aluminium box body - rugged industrial housing
IP54 standard, IP67 optional - site-selectable protection
Multiple output types - PP, TTL, HTL, HPL
M12 connector available - for industrial cabling systems
| Stroke (Measuring) Length | 0–5,000 mm and 0–12,000 mm |
| Resolution | 0.3 mm/pulse |
| Maximum Speed | 2 m/s |
| IP Protection | IP54 (Optional IP67) |
| Supply Voltage (PP) | 10–30 VDC Push-Pull |
| Supply Voltage (TTL) | 5 VDC RS422 Line Driver |
| HTL/HPL | Available on request |
| Output Signals | A, B (std); A, B, Z; A, /A, B, /B; A, /A, B, /B, Z, /Z |
| Body Material | Aluminium |
| Measuring Wire | Stainless Steel |
| Electrical Connection | 3 m cable / 5 m / 10 m / M12 8-pin male connector |
