Rotary Potentiometers

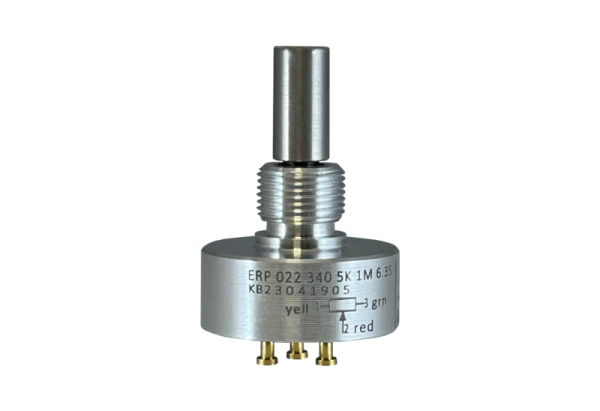

ERP 22
Compact Rotary Potentiometer - 22.2 mm Body, 340° Electrical Angle
Compact Rotary Potentiometer - 22.2 mm Body, 340° Electrical Angle
The ERP 22 is a compact 22.2 mm rotary potentiometer with a 340° electrical angle and 360° continuous mechanical rotation. Its infinite resolution and 10 million movement life suit joystick controllers, valve actuators, automotive systems, and master switch assemblies.
22.2 mm compact body - fits joystick and panel-mount applications
340° electrical angle - large working range for precise positioning
360° continuous mechanical rotation - no mechanical stop
±1% linearity - reliable position feedback across the travel range
Infinite resolution - smooth, stepless analog output
10 million movement life - long-term reliability in demanding duty cycles
| Body Diameter | 22.2 mm |
| Shaft Diameter | 6 mm or 6.35 mm |
| Electrical Angle | 340° |
| Mechanical Angle | 360° continuous |
| Linearity | ±1% |
| Resistance Values | 5K, 10K |
| Supply Voltage | 42V max. |
| Resolution | Infinite |
| Min. Life | 10 million movements |
| Electrical Connection | 3 gold-plated pins |
| IP Rating | IP50 |
| Operating Temperature | −25°C to +85°C |
| Weight | ~20 g |
| Body Material | Aluminium |
| Shaft Material | Stainless Steel |
Contact us for the full technical drawing (PDF)
Get a quotation or confirm specifications with our team.
