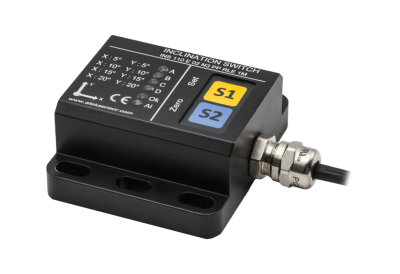

INS 110
Inclinometer — ±90° Two-Axis, PNP or Relay Output, IP64
Inclinometer — ±90° Two-Axis, PNP or Relay Output, IP64
The INS 110 is a two-axis inclinometer measuring tilt from ±90° on both X and Y axes simultaneously. With ±0.15° accuracy and PNP open collector or relay output, it provides reliable tilt switching — alerting when a machine, vehicle, or structure exceeds a set angle. IP64 protection suits industrial, outdoor, and mobile equipment.
Two-axis (XY) simultaneous measurement — single sensor covers both tilt planes
±90° measuring range — full tilt coverage in both directions
±0.15° accuracy — precise tilt switching threshold
PNP open collector or relay output — direct integration with PLCs and safety relays
IP64 protection — dust-tight and splash-proof
10–30 VDC supply — wide input range
| Axes | XY (two-axis) |
| Measuring Range | ±90° |
| Accuracy | ±0.15° |
| Output | PNP Open Collector or Relay |
| IP Rating | IP64 |
| Supply Voltage | 10–30 VDC |
| Operating Temperature | −25°C to +70°C |
The switching angle setpoint is configurable. When the measured tilt exceeds the preset threshold on either X or Y axis, the output switches. Hysteresis is built in to prevent rapid switching near the threshold. For continuous analog output, see the INS 130.
Contact us for the full technical drawing (PDF)
