Rotary Potentiometer
RHP 60
Hollow Shaft, 20 mm Bore, 59.8 mm Body — IP63
Hollow Shaft
IP63
20 mm Bore
±0.5%
Hollow Shaft, 20 mm Bore, 59.8 mm Body — IP63

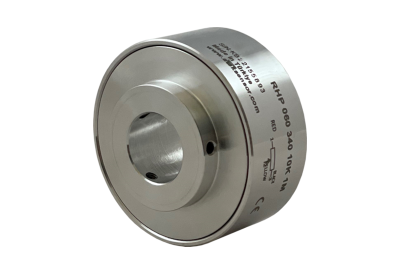

The RHP 60 is a large hollow shaft potentiometer with a 20 mm bore and 59.8 mm body, providing a larger through-hole than the RHP 30. Two electrical angle options (150° and 340°) allow it to be configured for short-travel or near-full-rotation applications. IP63 protection makes it suitable for dusty and wet environments.
Large 20 mm hollow bore — accommodates larger shafts than the RHP 30, no coupling or adapter required
59.8 mm body diameter — heavy-duty form factor for industrial machinery
Two electrical angle options (150° or 340°) — configure for short-travel or near-full-rotation use
±0.5% linearity — tighter accuracy for demanding position feedback
IP63 protection — dust-tight and protected against water spray
Potentiometric, voltage, and current outputs — flexible signal conditioning for PLC or analogue inputs
| Body Diameter | 59.8 mm |
| Bore (Hollow) | 20 mm |
| Electrical Angle | 150° or 340° |
| Linearity | ±0.5% |
| IP Rating | IP63 |
| Output | Potentiometric, 0–10 VDC, 4–20 mA |
| Resolution | Infinite |
| 150° Version | Short travel, high resolution over limited angle |
| 340° Version | Near-full rotation, wide angular range |
Specify electrical angle and output type at order. All variants use the same 59.8 mm hollow-shaft body with 20 mm bore.
59.8 mm body diameter, 20 mm bore
Contact us for the full technical drawing (PDF)
Get a quote or confirm bore size, electrical angle, and output type for your application.
