Incremental Rotary Encoders

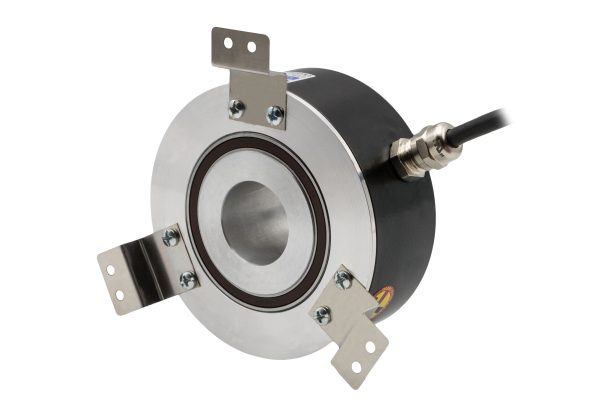

ARC H 100
Hollow Shaft, 100 mm Body - Optical Measurement
Hollow Shaft, 100 mm Body - Optical Measurement
The ARC H 100 is a large-body hollow shaft encoder designed for heavy machinery with large shaft diameters. Its 100 mm body accommodates bore sizes from 13 to 42 mm, making it the choice for wind turbines, marine drives, cranes, and construction equipment.
100 mm body - accommodates large shaft diameters 13–42 mm
1,024 PPR standard - for position and speed feedback
Optical measurement - high accuracy in magnetically noisy environments
IP54 rated - dust and splash protected
−25°C to +85°C - wide operating temperature range
| Measuring Principle | Optical |
| Body Diameter | 100 mm |
| Hole Diameter | 13 mm to 42 mm |
| Resolution | 1,024 pulses/rev |
| Operating Speed | 6,000 RPM max. |
| Response Frequency | 300 kHz |
| IP Protection | IP54 |
| Operating Temperature | −25°C to +85°C |
| Storage Temperature | −40°C to +100°C |
| Output Signals | A, /A, B, /B, Z, /Z |
| Output Current | 100 mA max. per channel |
| Body Material | Aluminium |
| Shaft Material | Aluminium |
Contact us for the full technical drawing (PDF)
