Incremental Rotary Encoders

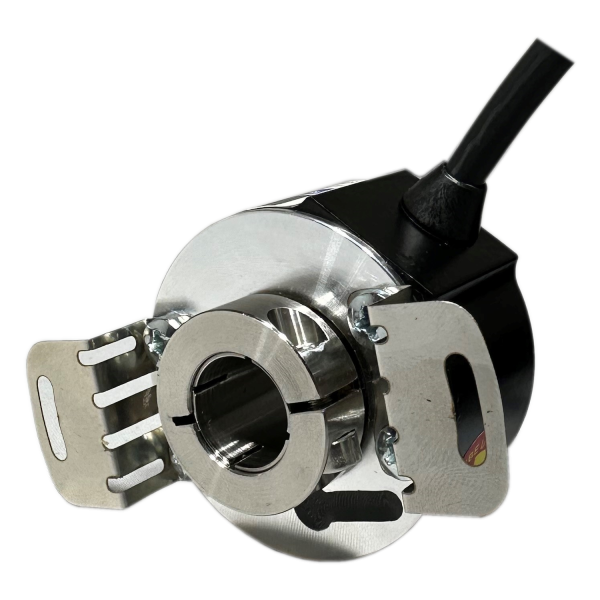

ARC H 50 K
Hollow Shaft, 50 mm Body - Optical, IP54, 1024 PPR
Hollow Shaft, 50 mm Body - Optical, IP54, 1024 PPR
The ARC H 50 K is an optical hollow shaft encoder with a compact 50 mm body and 1,024 PPR resolution. It supports a wide range of bore diameters from 6–15 mm and is suited for wind, marine, solar, and construction applications.
1,024 PPR - standard resolution for general automation
Wide bore range 6–15 mm - fits most standard shaft sizes
IP54 protection - dust and water splash rated
6,000 RPM max. - suitable for high-speed drives
Aluminium body - lightweight and corrosion resistant
| Measuring Principle | Optical |
| Body Diameter | 50 mm |
| Hollow Diameter | 6, 8, 10, 12, 14, 15 mm |
| Resolution | 1,024 pulses/rev |
| Operating Speed | 6,000 RPM max. |
| Response Frequency | 300 kHz |
| Supply Current | 50 mA nominal |
| IP Protection | IP54 |
| Operating Temperature | −25°C to +85°C |
| Storage Temperature | −40°C to +100°C |
| Output Signals | A, /A, B, /B, Z, /Z |
| Output Current | 100 mA max. per channel |
| Body Material | Aluminium |
| Shaft Material | Stainless Steel |
