Incremental Rotary Encoders

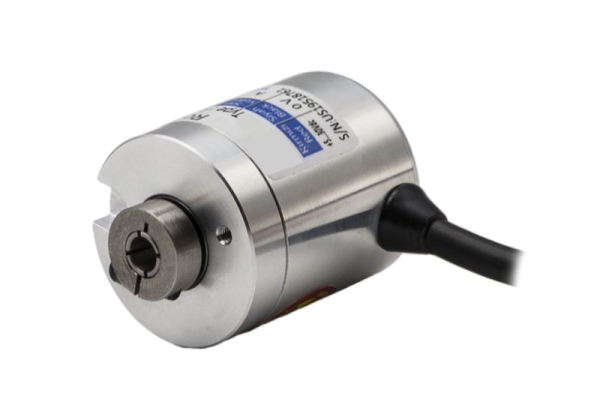

ARS B 37
Semi-Hollow Shaft, 37 mm Body - Magnetic Measurement
Semi-Hollow Shaft, 37 mm Body - Magnetic Measurement
The ARS B 37 uses magnetic measurement in a compact 37 mm body with semi-hollow shaft options. Its robust structure and IP54 rating make it ideal for demanding industrial environments where optical encoders would be susceptible to contamination.
Magnetic measurement - tolerates dust, oil mist, and vibration better than optical
Compact 37 mm body - fits tight installation spaces
Semi-hollow shaft - 4, 5, or 6 mm bore options
IP54 protection - suitable for factory environments
Lightweight ~90 g - minimises load on motor bearings
| Measuring Principle | Magnetic |
| Body Diameter | 37 mm |
| Shaft Diameter | 4 mm, 5 mm, 6 mm (semi-hollow) |
| Resolution | Up to 1,024 pulses/rev |
| Operating Speed | 3,000 RPM max. |
| Response Frequency | 300 kHz |
| Supply Current | 50 mA nominal |
| IP Protection | IP54 |
| Operating Temperature | −25°C to +85°C |
| Storage Temperature | −40°C to +100°C |
| Output Signals | A, /A, B, /B, Z, /Z |
| Output Current | 100 mA max. per channel |
| Weight | ~90 g |
Contact us for the full technical drawing (PDF)
