Incremental Rotary Encoder
ARX B 58
Semi-Hollow Shaft, 58 mm Body — Up to 20 mm Bore
Semi-Hollow Shaft, 58 mm Body — Up to 20 mm Bore

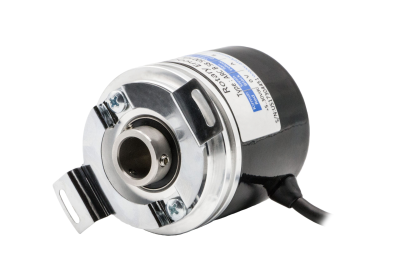

The ARX B 58 is a semi-hollow incremental encoder in a 58 mm body accepting shafts from 6 to 20 mm — the largest bore range in the ARX family. Available in optical (up to 20,000 PPR) or magnetic variants, it is designed for heavier-duty applications where larger shaft diameters are common. The magnetic variant offers reliable performance in dusty or contaminated environments.
Ordering note: ARX models combine two measurement families — specify optical (ARC) for maximum resolution and precision, or magnetic (ARS) for immunity to dust, oil, and condensation in harsh environments.
Semi-hollow shaft (6–20 mm bore) - accommodates larger shaft diameters
Optical or magnetic measurement options - choose for your environment
Optical up to 20,000 PPR - high-resolution for precision control
IP54 rated - protected against dust and water splash
58 mm aluminium body - heavier duty construction
Suited for larger machinery and shafts - cranes, presses, heavy automation
| Body Diameter | 58 mm |
| Measuring Principle | Optical (ARC) or Magnetic (ARS) |
| Bore (Semi-Hollow) | 6 – 20 mm |
| Resolution (Optical) | Up to 20,000 pulses/rev |
| Resolution (Magnetic) | 1 – 1,024 pulses/rev |
| IP Protection | IP54 |
| Body Material | Aluminium |
| Operating Temperature | −25°C to +85°C |
| Supply Voltage (Push-Pull) | 10–30 VDC |
| Supply Voltage (TTL) | 5 VDC |
| Output Type | Push-Pull (PP), TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Electrical Connection | Shielded cable or M12 connector |
Dimensional drawing placeholder
Contact us for full technical drawing (PDF)
