Incremental Rotary Encoder
ARX B 50
Semi-Hollow Shaft, 50 mm Body — Optical or Magnetic
Semi-Hollow Shaft, 50 mm Body — Optical or Magnetic

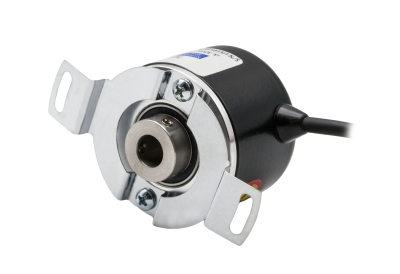

The ARX B 50 is a semi-hollow shaft incremental rotary encoder in a 50 mm body, available with either optical or magnetic measurement depending on the application environment. The optical variant delivers up to 20,000 PPR for high-precision applications, while the magnetic variant (1–1,024 PPR) provides robust operation in contaminated environments. The semi-hollow design accepts shaft diameters from 6 to 12 mm for direct mounting without couplings.
Ordering note: ARX models combine two measurement families — specify optical (ARC) for maximum resolution and precision, or magnetic (ARS) for immunity to dust, oil, and condensation in harsh environments.
Semi-hollow shaft (6–12 mm bore) - direct mounting without couplings
Choice of optical or magnetic measurement - match to your environment
Optical up to 20,000 PPR - high-resolution precision applications
Magnetic up to 1,024 PPR - robust performance in contaminated environments
IP54 rated - protected against dust ingress and water splash
50 mm aluminium body, ~180 g - mid-range form factor
| Body Diameter | 50 mm |
| Measuring Principle | Optical (ARC) or Magnetic (ARS) |
| Bore (Semi-Hollow) | 6 mm / 8 mm / 10 mm / 12 mm |
| Resolution (Optical) | Up to 20,000 pulses/rev |
| Resolution (Magnetic) | 1 – 1,024 pulses/rev |
| IP Protection | IP54 |
| Weight | ~180 g |
| Body Material | Aluminium |
| Operating Temperature | −25°C to +85°C |
| Supply Voltage (Push-Pull) | 10–30 VDC |
| Supply Voltage (TTL) | 5 VDC |
| Output Type | Push-Pull (PP), TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Electrical Connection | Shielded cable or M12 connector |
