Incremental Rotary Encoder
ARX S 50
Solid Shaft, 50 mm Body — Optical or Magnetic
Solid Shaft, 50 mm Body — Optical or Magnetic

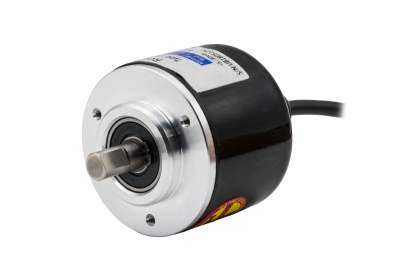

The ARX S 50 is a solid-shaft incremental encoder in a 50 mm body, available with optical or magnetic measurement. The solid shaft design with flange coupling suits applications where direct hollow-shaft mounting is not possible. The optical variant offers up to 20,000 PPR for precision speed and position control; the magnetic variant offers robust performance in contaminated environments.
Ordering note: ARX models combine two measurement families — specify optical (ARC) for maximum resolution and precision, or magnetic (ARS) for immunity to dust, oil, and condensation in harsh environments.
Solid shaft (6 mm, 8 mm, 10 mm) - flexible coupling or flange mount
Optical or magnetic measurement - choose to suit your environment
Optical up to 20,000 PPR - high resolution for precision applications
IP54 rated - protected against dust ingress and water splash
50 mm aluminium body, ~180 g - mid-range form factor
Flange coupling mount - for applications without accessible hollow shafts
| Body Diameter | 50 mm |
| Measuring Principle | Optical (ARC) or Magnetic (ARS) |
| Shaft Diameter | 6 mm / 8 mm / 10 mm |
| Resolution (Optical) | Up to 20,000 pulses/rev |
| Resolution (Magnetic) | 1 – 1,024 pulses/rev |
| IP Protection | IP54 |
| Weight | ~180 g |
| Body Material | Aluminium |
| Operating Temperature | −25°C to +85°C |
| Supply Voltage (Push-Pull) | 10–30 VDC |
| Supply Voltage (TTL) | 5 VDC |
| Output Type | Push-Pull (PP), TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Electrical Connection | Shielded cable or M12 connector |
Dimensional drawing placeholder
Contact us for full technical drawing (PDF)
