Draw Wire Position Transducer (Magnetic Absolute)
AWP 515
Magnetic Absolute Draw Wire — Up to 15,000 mm, CANopen
Magnetic Absolute
IP54
15,000 mm
CANopen
Magnetic Absolute Draw Wire — Up to 15,000 mm, CANopen

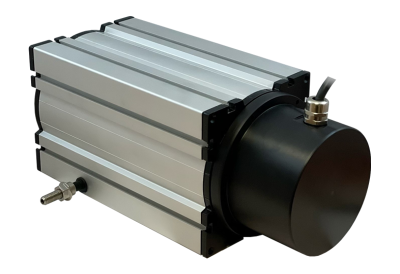

The AWP 515 is a magnetic absolute draw wire sensor for strokes up to 15,000 mm. The absolute magnetic measuring principle retains position data without battery backup — ideal for applications where power loss cannot cause position loss. Programmable analog output and CANopen fieldbus options allow integration into modern control systems.
Magnetic absolute measuring — no battery backup required, retains position on power loss
Up to 15,000 mm stroke — covers very long travel ranges in a single sensor
Programmable analog or CANopen output — flexible integration into any control architecture
1 m/s maximum speed — suits most slow to medium speed positioning systems
IP54 standard, IP67 optional — reliable in dusty and wet environments
Stainless steel wire — corrosion resistant, high tensile strength
| Stroke Length | Up to 15,000 mm |
| Measuring Type | Magnetic Absolute |
| Output | Analog (programmable) or CANopen |
| Maximum Speed | 1 m/s |
| IP Rating | IP54 (optional IP67) |
| Measuring Wire | Stainless steel |
| Battery Backup | Not required |
| Operating Temperature | −25°C to +85°C |
| Analog (programmable) | Voltage or current output, programmable span and zero |
| CANopen | Fieldbus digital output per CiA 406 profile |
The programmable analog output allows the user to set the electrical span to match the actual stroke, simplifying scaling in the PLC. CANopen integration allows the sensor to be placed directly on the machine fieldbus.
Aluminium housing, cable or M12 connector exit
Contact us for the full technical drawing (PDF)
Get a quote or ask about stroke options, output type, and CANopen configuration.
