Draw Wire Position Transducer (Magnetic Absolute)
AWP 703
Magnetic Absolute Draw Wire — Up to 3,000 mm, IP67
Magnetic Absolute
IP67
3,000 mm
CANopen
Magnetic Absolute Draw Wire — Up to 3,000 mm, IP67

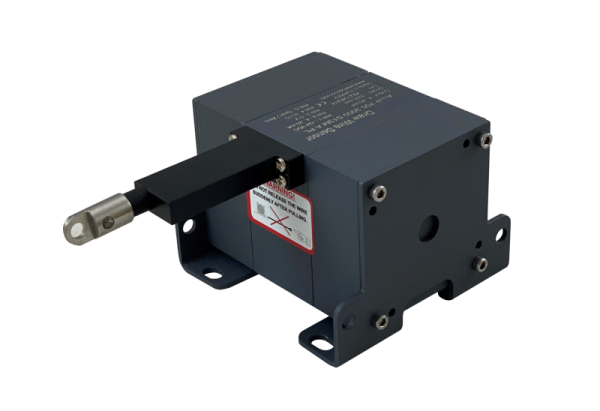

The AWP 703 is a compact magnetic absolute draw wire sensor for strokes up to 3,000 mm with IP67 protection. The absolute magnetic principle requires no battery backup. Full IP67 rating makes it suitable for wet washdown environments and outdoor machinery.
Magnetic absolute measuring — retains position on power loss, no battery required
Up to 3,000 mm stroke — compact sensor for medium-range positioning
IP67 full immersion protection — rated for washdown and outdoor use
Programmable analog or CANopen output — integrates into any control system
Stainless steel wire — corrosion resistant for outdoor and wet environments
Washdown-safe housing — withstands direct water jets and cleaning agents
| Stroke Length | Up to 3,000 mm |
| Measuring Type | Magnetic Absolute |
| Output | Analog (programmable) or CANopen |
| IP Rating | IP67 |
| Measuring Wire | Stainless steel |
| Battery Backup | Not required |
| Operating Temperature | −25°C to +85°C |
| Analog (programmable) | Voltage or current output, programmable span and zero |
| CANopen | Fieldbus digital output per CiA 406 profile |
The programmable analog output allows the user to set the electrical span to match the actual stroke, simplifying PLC configuration. CANopen enables direct fieldbus integration in modern machine architectures.
IP67 aluminium housing, cable or M12 connector exit
Contact us for the full technical drawing (PDF)
Get a quote or ask about stroke options, IP67 connector choices, and output configuration.
