Angle, Inclination & Distance Sensors

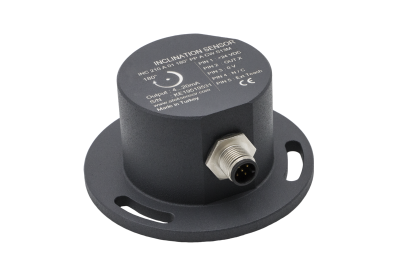

INC 210
Angle / Tilt Sensor — CANopen CiA DS410, ±0.2°, IP67
Angle / Tilt Sensor — CANopen CiA DS410, ±0.2°, IP67
The INC 210 is a professional angle and tilt sensor with CANopen CiA DS410 support — the international standard for inclination sensors on CANopen networks. The redundant output option provides fail-safe measurement for safety-critical applications. IP67, wide temperature range, and multiple output types suit construction, marine, and heavy industrial applications.
CANopen CiA 301 and DS410 compliant — standard fieldbus integration
Redundant output — fail-safe measurement for safety-critical applications
0–360° with ±0.2° accuracy — full range, high precision
IP67 fully sealed — submersible, fully dust-tight
Wide temperature range — −40°C to +85°C
Analog (4–20mA / 0–10V) also available — for non-bus applications
| Measuring Range | 0–360° |
| Accuracy | ±0.2° |
| Output | 4–20 mA, 0–10 VDC, CANopen, Redundant |
| CANopen Profile | CiA 301, DS410 |
| IP Rating | IP67 |
| Supply Voltage | 10–30 VDC |
| Operating Temperature | −40°C to +85°C |
CANopen profile CiA DS410 is the international standard for inclination sensors on CANopen networks. The redundant output variant provides two independent measurement channels — if one fails, the system can detect the discrepancy and switch to safe mode.
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
