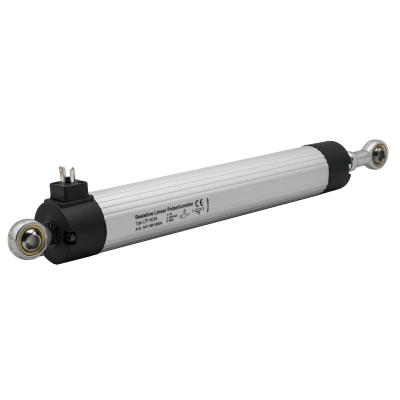

LTP Series
Double Articulated, M12 Socket — Up to 1,000 mm
Articulated
IP62
1,000 mm
M12 Socket
Double Articulated, M12 Socket — Up to 1,000 mm
The LTP Series is similar to the LTC Series but uses an M12 socket connector rather than a 90° socket, simplifying cable connection in industrial environments where M12 connectors are standard. Double articulated ends allow ±30° angular misalignment at both connection points, making installation straightforward even with imperfect alignment.
Double articulated — ±30° angular motion at both ends
M12 socket connector — industrial standard, quick cable swap
50–1,000 mm stroke range — multiple increments available to order
IP62 protection — sealed against dust and limited water jets
Infinite resolution — resistive element with no quantisation error
50 million movement life — conductive plastic resistive element
| Stroke Range | 50 – 1,000 mm |
| Angular Motion | ±30° (double articulated, both ends) |
| Output Signal | Potentiometric, 4–20 mA, 0–10 VDC |
| Connection | M12 socket connector |
| IP Rating | IP62 |
| Resolution | Infinite |
| Life | 50 × 10⁶ movements |
| Supply Voltage (Potentiometric) | 42 V max. |
| Supply Voltage (Current/Voltage) | 12–30 VDC |
| Operating Temperature | −30°C to +100°C |
| Body Material | Aluminium |
| Rod Material | Stainless Steel |
Current and voltage output models require 12–30 VDC supply. Potentiometric models accept up to 42 V.
