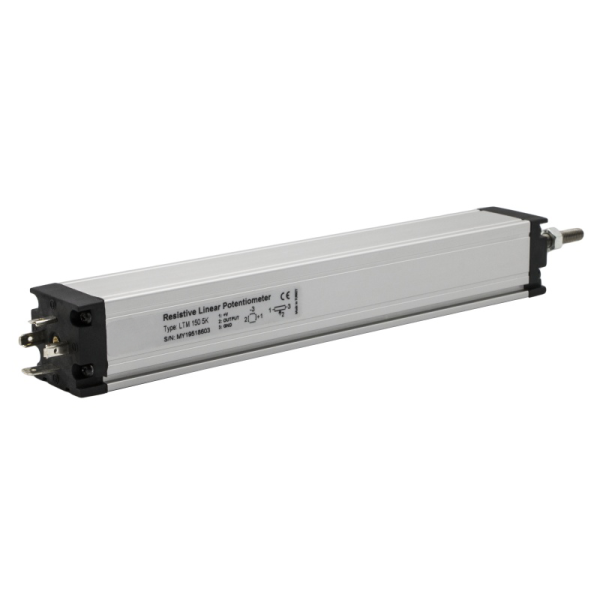

Linear Position Transducer - One-Sided Actuating Rod, 50–1000 mm
Linear Position Transducer - One-Sided Actuating Rod, 50–1000 mm
The LTM is the most widely used linear transducer in industry. It measures via the potentiometric principle - absolute measurement that does not lose position on power loss. A one-sided actuating rod with adjustable mounting feet makes installation straightforward.
Absolute measurement - never loses position through power loss
25 stroke increments - 50 mm to 1,000 mm, to order
±0.2% FS linearity - suitable for precision motion control
Infinite resolution (potentiometric) - no quantisation error
IP62 rated - sealed against dust and limited water jets
Life: 50 × 10⁶ movements - conductive plastic element
| Electrical Stroke | 50 mm to 1,000 mm (25 increments) |
| Independent Linearity | ±0.2% (50–200 mm); ±0.12% (225–550 mm); ±0.1% (600–1,000 mm) |
| Repeatability | 0.01 mm |
| Max Operating Speed | ≤ 5 m/s |
| Resistance Element | Conductive Plastic |
| Output Signal | Potentiometric; 4–20 mA (opt. 0–20 mA) or 0–10 V |
| Supply Voltage (Potentiometric) | 42 V max. |
| Supply Voltage (Analog) | 20–30 VDC |
| Resolution | Infinite |
| Electrical Connection | 3 × 0.14 mm² shielded PVC cable or DIN 43650-A socket |
| Mechanical Fixing | Adjustable (sliding) mounting feet |
| IP Protection | IP62 |
| Operating Temperature | −30°C to +100°C |
| Life | 50 × 10⁶ movements |
| Body Material | Aluminium |
| Rod Material | Stainless Steel |
Contact us for the full technical drawing (PDF)
