LTS Series
Magnetic Linear Encoder System - Twin Bearing Actuating Rod, 5 µm Resolution
Magnetic Linear Encoder System - Twin Bearing Actuating Rod, 5 µm Resolution

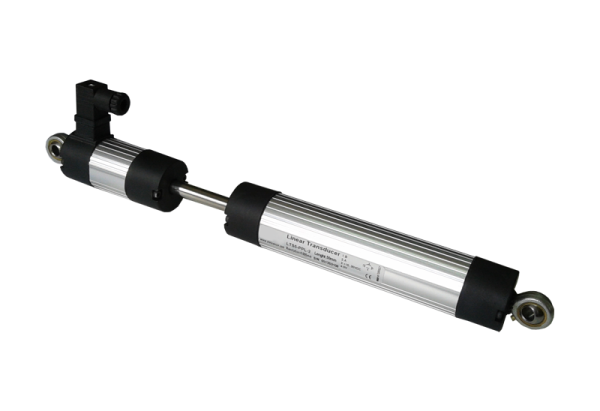

The LTS is a non-contact magnetic linear encoder system that delivers incremental digital pulse output. The twin bearing actuating rod design is unaffected by deflections and suitable for metal, marble, plastic, textile, saw, and packaging industries. Its non-contact design gives mechanically infinite life.
Non-contact magnetic measurement - no mechanical wear, infinite life
Resolution as fine as 5 µm - 7 resolution options down to 5 µm
Twin bearing actuating rod - immune to deflection and vibration
IP65 protection - fully dust-tight and water jet resistant
Incremental digital output - A, B, Z signals for PLC/counter input
Multiple electrical interfaces - TTL, PP, HTL, HPL
| Measuring Distance | 50 mm to 1,000 mm |
| Resolution | 5 µm, 10 µm, 20 µm, 25 µm, 62.5 µm, 80 µm, 100 µm |
| Output Signals (DIN) | A, B |
| Output Signals (Cable) | A, B, Z or A, /A, B, /B, Z, /Z |
| Interface (TTL) | Supply 5 VDC / Output 5 VDC TTL RS422 |
| Interface (PP) | Supply 10–30 VDC / Output 10–30 VDC Push-Pull |
| Interface (HTL) | Supply 10–30 VDC / Output 5 VDC RS422 |
| Interface (HPL) | Supply 5–30 VDC / Output 5–30 VDC Push-Pull |
| Repeatability | ±1 Pulse |
| Life | Mechanically infinite (non-contact) |
| IP Protection | IP65 |
| Operating Temperature | −20°C to +85°C |
| Operating Speed | 3 m/s |
| Housing Material | Anodised Aluminium |
