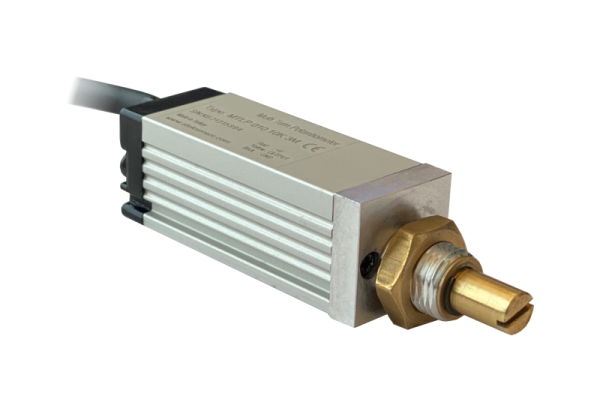

Rotary Potentiometer
MTLP
Multiturn Potentiometer — 10, 25, or 50 Turns
Multiturn
±0.4% Linearity
50 Turns Max
High Res.
Multiturn Potentiometer — 10, 25, or 50 Turns
The MTLP multiturn potentiometer converts multiple shaft rotations into a proportional resistance output, providing much higher resolution over a wide mechanical travel than a single-turn type. Available in 10-turn, 25-turn, and 50-turn versions, linearity improves with more turns (±0.4% on the 50-turn). Suitable for precision panel controls, lab instruments, and high-accuracy position feedback.
10, 25, or 50 turn options — select the number of turns to match required travel and resolution
Linearity improves with more turns — ±1.5% at 10T, ±0.5% at 25T, ±0.4% at 50T
Wide temperature range — rated −30°C to +100°C for both industrial and instrumentation use
Infinite resolution — conductive plastic element with no quantisation steps
High precision over extended travel — far greater positional resolution than single-turn types
For precision control and instrumentation — ideal for calibration rigs, servo drives, and lab equipment
| Number of Turns | 10, 25, or 50 |
| Linearity (10T) | ±1.5% |
| Linearity (25T) | ±0.5% |
| Linearity (50T) | ±0.4% |
| Output | Potentiometric |
| Operating Temperature | −30°C to +100°C |
| Resolution | Infinite |
| 10-Turn Version | ±1.5% linearity — general industrial use |
| 25-Turn Version | ±0.5% linearity — improved accuracy for instrumentation |
| 50-Turn Version | ±0.4% linearity — highest precision, widest travel range |
More turns provide higher positional resolution and improved linearity. Choose the 50-turn version where maximum accuracy is required over a wide mechanical travel. Specify turns count and resistance value at order.
| Resistance Values | 500 Ω, 1 kΩ, 2 kΩ, 5 kΩ (contact us for full range) |
| Electrical Connection | Solder terminals or cable (specify at order) |
Multiturn body — dimensions vary by turns count
Contact us for the full technical drawing (PDF)
Get a quote or confirm turns count, resistance value, and connection type for your application.
