RCS 2100
Non-Contact Magnetic Angle Sensor — 0–360°, ±0.5% FS, IP67
Non-Contact Magnetic Angle Sensor — 0–360°, ±0.5% FS, IP67

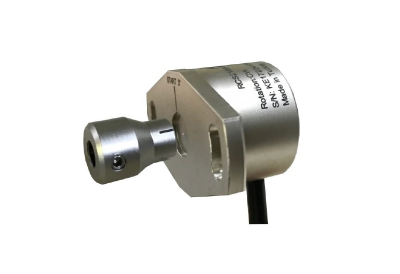

The RCS 2100 is a non-contact magnetic angle sensor measuring from 0 to 360°. The Hall-effect magnetic principle provides wear-free operation and immunity to contamination from dust, oil, and moisture. 12-bit resolution delivers 4,096 positions per revolution. Multiple analog output options and IP67 protection suit a wide range of industrial angle measurement applications.
Non-contact magnetic measurement — no mechanical wear, immune to contamination
0–360° measuring range — user selectable
12-bit resolution — 4,096 positions per revolution
Multiple outputs — 4–20 mA, 0–10V, 0–5V, Ratiometric
IP67 fully sealed — submersible, fully dust-tight
Wide temperature range — −40°C to +85°C operating
| Measuring Range | 0–360° (user selectable) |
| Measuring Principle | Magnetic (non-contact) |
| Resolution | 12-bit |
| Linearity | ±0.5% FS |
| Output | 4–20 mA, 0–10 VDC, 0–5 VDC, Ratiometric |
| IP Rating | IP67 |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
Supply voltage: 12–30 VDC. Specify output type on order.
Contact us for the full technical drawing (PDF)
