Compact Non-Contact Angle Sensor — 28 mm Body, IP67
Compact Non-Contact Angle Sensor — 28 mm Body, IP67

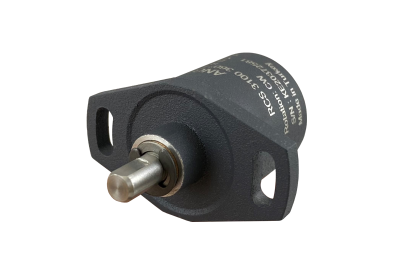

The RCS 3100 packs a 12-bit non-contact magnetic angle sensor into a compact 28 mm body. Where the larger RCS 4800 cannot fit, the RCS 3100 provides the same full 0–360° measurement capability in a significantly smaller package. IP67 and wide temperature range ensure reliable operation in demanding environments.
Compact 28 mm body — fits where larger sensors cannot
Non-contact magnetic measurement — no mechanical wear
0–360° user selectable — full revolution coverage
12-bit resolution — 4,096 positions per revolution
IP67 protection — fully sealed
All standard analog outputs — 4–20 mA, 0–10V, 0–5V, Ratiometric
| Measuring Range | 0–360° (user selectable) |
| Measuring Principle | Magnetic (non-contact) |
| Body Diameter | 28 mm |
| Resolution | 12-bit |
| Output | 4–20 mA, 0–10 VDC, 0–5 VDC, Ratiometric |
| IP Rating | IP67 |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
The RCS 3100 offers identical output options to the RCS 4800 in a 28 mm compact body — suitable for tight installations where a standard 58 mm encoder-size body cannot be accommodated.
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
