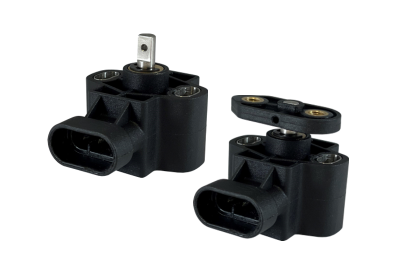

RCS 2300
Hall-Effect Angle Sensor — Up to 360°, IP69K, Shaft or Lever Mount
Hall-Effect Angle Sensor — Up to 360°, IP69K, Shaft or Lever Mount
The RCS 2300 is a Hall-effect angle sensor with IP69K protection — the highest IP rating in the RCS range, withstanding high-pressure steam and washdown. Eight measuring range options allow it to be configured precisely for the application. Available with shaft or lever mounting for flexible installation.
IP69K — high-pressure washdown and steam resistant
8 measuring range options — up to 360°, configurable to application
Hall-effect non-contact measurement — no mechanical wear
Shaft or lever mounting — flexible installation options
Ratiometric / voltage / current outputs — standard analog interfaces
Wide temperature range — −40°C to +85°C operating
| Measuring Range | Up to 360° (8 range options) |
| Measuring Principle | Hall-effect |
| Mounting | Shaft or lever |
| Output | Ratiometric, 0–10 VDC, 4–20 mA |
| IP Rating | IP69K |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
Eight standard measuring ranges available — select at time of order. Contact Tecnis for the full range table.
Shaft mount: direct coupling to rotating shaft. Lever mount: pin-and-arm linkage for linear-to-angular conversion.
Contact us for the full technical drawing (PDF)
