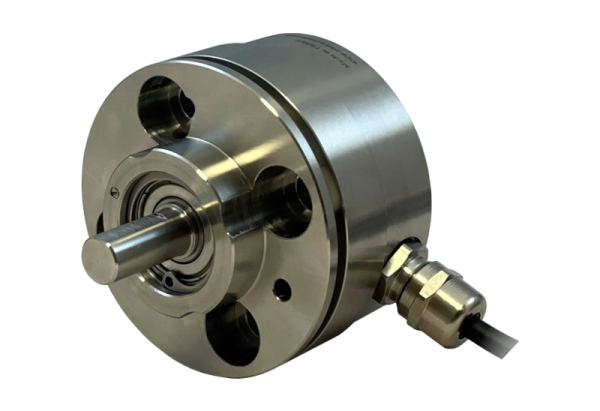

RCS 9200
Non-Contact Angle Sensor - Full Stainless Steel Body, IP67, 3000 RPM
Non-Contact Angle Sensor - Full Stainless Steel Body, IP67, 3000 RPM
The RCS 9200 is a fully stainless steel angle sensor with a 10 mm shaft, 3,000 RPM operational speed, and IP67 protection, suitable for the most demanding industrial environments including marine, offshore, and heavy industry.
Full stainless steel body and shaft - maximum corrosion resistance
IP67 protection - submersible, fully dust-tight
Non-contact magnetic measurement - no mechanical wear
3,000 RPM max speed - suitable for fast-rotating shafts
12-bit resolution - 4,096 steps per revolution
0–360° user-selectable range - configure to your application
±0.5% FS linearity - consistent across the full range
| Measuring Range | 0 to 360° (user selectable) |
| Measuring Type | Magnetic, Non-contact |
| Linearity | ±0.5% FS |
| Resolution | 12-bit (4,096 steps/revolution) |
| Repeatability | 0.1° |
| Response Frequency | 250 Hz |
| Shaft Diameter | 10 mm |
| Body Diameter | 68 mm |
| Max Operational Speed | 3,000 RPM |
| Output Signal Options | 0.5–4.5 VDC Ratiometric, 0–5 VDC, 0–10 VDC, 4–20 mA |
| Electrical Connection | 3 × 0.14 mm² shielded cable |
| IP Protection | IP67 |
| Operating Temperature | −25°C to +85°C |
| Body Material | Stainless Steel |
| Shaft Material | Stainless Steel |
Contact us for the full technical drawing (PDF)
