Draw Wire Position Transducer (Magnetic Absolute)
AWP 706
Magnetic Absolute Draw Wire — Up to 6,000 mm, IP67
Magnetic Absolute
IP67
6,000 mm
8N Force
Magnetic Absolute Draw Wire — Up to 6,000 mm, IP67

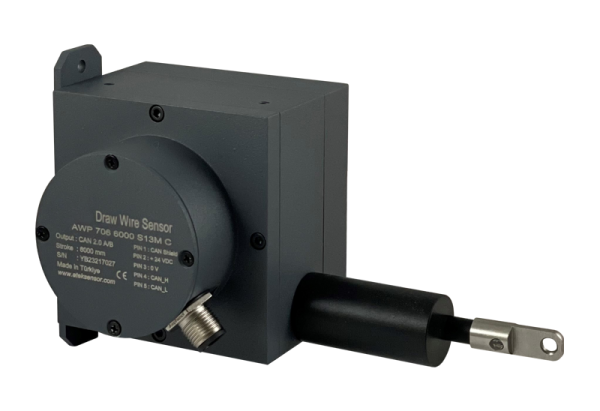

The AWP 706 is a magnetic absolute draw wire sensor for strokes up to 6,000 mm with IP67 protection. An 8 N wire extension force provides consistent measurement under vibration. The absolute magnetic principle retains position without battery backup.
Magnetic absolute measuring — retains position on power loss, no battery required
Up to 6,000 mm stroke — medium to long range position measurement
8 N extension force — maintains consistent wire tension for stable measurement under vibration
IP67 rating — full dust exclusion and immersion protection up to 1 m
Programmable analog or CANopen output — flexible integration into any control system
No battery backup required — lower maintenance, true absolute position
| Stroke Length | Up to 6,000 mm |
| Measuring Type | Magnetic Absolute |
| Output | Analog (programmable) or CANopen |
| Extension Force | 8 N |
| IP Rating | IP67 |
| Measuring Wire | Stainless steel |
| Battery Backup | Not required |
| Operating Temperature | −25°C to +85°C |
| Analog (programmable) | Voltage or current output, programmable span and zero |
| CANopen | Fieldbus digital output per CiA 406 profile |
Programmable analog output simplifies PLC scaling by matching the electrical span to the physical stroke. The 8 N constant wire tension maintains measurement accuracy in vibrating or dynamic environments.
IP67 aluminium housing, cable or M12 connector exit
Contact us for the full technical drawing (PDF)
Get a quote or ask about stroke options, IP67 connector choices, and output configuration.
