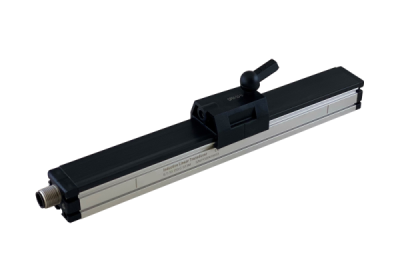

ILT 110
Inductive Touchless Linear — 1 µm Resolution, 500 Hz
Inductive
IP64
1 µm
500 Hz
Inductive Touchless Linear — 1 µm Resolution, 500 Hz
The ILT 110 is an inductive touchless linear position sensor delivering 1 µm resolution at 500 Hz update rate. Unlike resistive transducers, the inductive principle requires no mechanical contact — the sensing element never wears. The absolute measuring principle means position is retained even after a power cycle, without battery backup. Multiple output options including SSI, CANopen, and RS-485 allow integration into any control architecture.
Touchless inductive measurement — no mechanical wear, maintenance-free
1 µm resolution — precision positioning for demanding applications
500 Hz update rate — fast response for dynamic motion control
Absolute measurement — position retained after power cycle, no battery required
Analog, SSI, CANopen, RS-485 outputs — flexible integration into any control system
IP64 protection — resistant to dust and splash water
| Measuring Principle | Inductive (touchless, absolute) |
| Resolution | 1 µm |
| Update Rate | 500 Hz |
| Output Signal | Analog, SSI, CANopen, RS-485 |
| IP Rating | IP64 |
| Position Retention | Absolute (no battery backup required) |
| Operating Temperature | −20°C to +85°C |
The contactless inductive principle eliminates wear entirely — the ILT 110 provides consistent accuracy throughout its service life without calibration drift caused by element degradation.
Contact us for the full technical drawing (PDF)
