Linear Position Transducers & Encoders

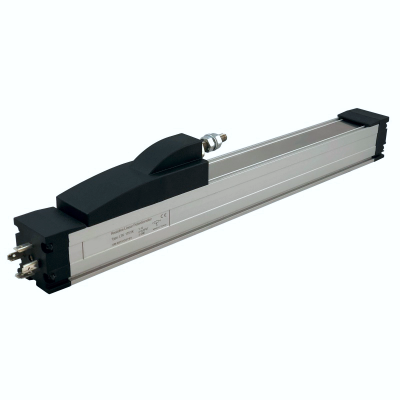

LTK Series
Rodless Sliding Transducer — Up to 1,500 mm, 100 M Life
Rodless
Infinite Res.
1,500 mm
100M Life
Rodless Sliding Transducer — Up to 1,500 mm, 100 M Life
The LTK Series is a rodless sliding linear position transducer. Unlike rod-type transducers, the resistive track is enclosed and a sliding carriage moves along the outside. This rodless design eliminates the external rod entirely, making it suitable for tight-space installations and applications requiring a lower profile. Strokes up to 1,500 mm with infinite resolution and 100 million movement life.
Rodless sliding design — no external rod, compact profile
Compact profile — suited for tight-space installations
50–1,500 mm stroke range — longer reach than standard rod types
Infinite resolution — no quantisation error, smooth feedback
100 million movement life — extended durability for high-cycle use
Potentiometric / voltage / current outputs — integrates with any controller
| Stroke Range | 50 – 1,500 mm |
| Type | Rodless sliding transducer |
| Output Signal | Potentiometric, 4–20 mA, 0–10 VDC |
| Resolution | Infinite |
| Life | 100 × 10⁶ movements |
| Body Material | Aluminium |
| Supply Voltage (Potentiometric) | 42 V max. |
| Supply Voltage (Current/Voltage) | 20–30 VDC |
| Operating Temperature | −30°C to +100°C |
Current and voltage output models require 20–30 VDC supply. Potentiometric models accept up to 42 V.
